Industrijska merilna in testna oprema

AC Motorji

DAX MASM-1

·         AC motor tester for small AC motors. Voltage up to 400V, power up to 100W. Intended for laboratory and production line.

·         Integrated Hi-Pot test up to 5kVAC and 6kVDC

·         NT or Windows 2000 operating system for control computer.



s-masm1 MASM2_001





DAX MASM-2

·         AC motor tester for small AC motors. Voltage up to 400V, power up to 500W. Intended for laboratory and production line.

·         Integrated Hi-Pot test up to 5kVAC and 6kVDC

·         NT or Windows 2000 operating system for control computer.



s-masm2    MASM2_001





DAX MASM-2KL

·         An upgrade from MASM-2. A special purpose measurement station is added.

·         AC motor tester for small AC motors. Voltage up to 450V, power up to 600W. Intended for laboratory and production line.

·         NT or Windows 2000 operating system for control computer.

·         Integrated Hi-Pot test up to 5kVAC and 6kVDC



masm2-kl-s  MASM2_002





DAX MASM-2P

·          AC motor tester for small AC motors. Voltage up to 400V, power up to 500W. Intended for laboratory and production line.

·         Integrated Hi-Pot test up to 5kVAC and 6kVDC

·         Air pressure sensors

·         NT or Windows 2000 operating system for control computer.



masm2-p1-s  MASM2_002





DAX MASM-2U

·         An upgrade from MASM-2. Measurement of broader range of motors is possible.

·         AC motor tester for small AC motors. Voltage up to 450V, power up to 600W. Intended for laboratory and production line.

·         Integrated Hi-Pot test up to 5kVAC and 6kVDC

·         Universal I/O interface for various test fixtures

·         NT or Windows 2000 operating system for control computer.



masm2-u-s  Tek00004



DC Motorji

DAX-MDC

·         Test system for collector DC motors

·         Voltage range 12, 24, 110, 230V

·         Motor power up to 500W

·         Current measurement for up to five points in load characteristics

·         Contactless measurement of motor moment for up to five points in load characteristics

·         Power measurement of motor moment for up to five points in load characteristics

·         Radial and axial vibration level measurement

·         RPM contactless measurement up to 30.000RPM.

·         Analysis of collector current commutation with FFT, automatic detection of collector and windings damages.



s-mds    Diagrami-prekinjen





DAX-MSDC

·         Automatic production line for small DC motors. Based on Bosch palette system TS2.

·         Magnetizing of assembled motors in axial coil, opening up to 70x170mm

·         Magnetic field density of up to 1.3T

·         Magnetizer with 1800Ws or 5000Ws energy

·         Burn in station for three motors

·         Mechanical and electrical tests as in DAX MDC

·         High voltage test up to 5kV AC and 6kV DC

·         Contactless ink jet marking with Imaje S8 or Domino A100 printer

·         Traceability 100% with motor serial number referenced to log file generated automatically. Test results are written to control computer hard disk under serial number, same serial number is printed on motor

·         Full automatic operation of complete line.

·         Cycle time 12 seconds

·         Universal palette nests for two motor sizes



s-msdca   DC35_002



EC Motorji

DAX-MASM2-BG20

·         Test system for electronically commutated motors

·         Voltage range 12, 24, 110, 230V

·         Motor power up to 200W

·         Current measurement for up to five points in load characteristics

·         Contactless measurement of motor moment for up to five points in load characteristics

·         True and apparent power measurement of motor

·         RPM contactless measurement up to 30.000RPM

·         HI-Pot test up to 5kVAC or 6kVDC



bg-20-s     bg20-2-s



App-Idle



FI Stikala

DAX FIPC2 measurement system /part of FI-ROBO or independent unit

DAX FIPC2 is a PC based universal instrument intended for tests on different types of FI switches. Basically, it consists of accurate current generators, voltage, time, conductivity and sequence circuits. User interface provides easy test protocol editing and simple menu system.



s-fipc2a



Technical characteristics:



·         Current ranges: 50, 100, 200, 500, 1000, 2000, 5000 and 10000mA

·         Current shapes: sinus, + and - half wave, 5 to 135 degrees truncated sine wave, + and -, +/- symmetrical 5 to 135 degrees truncated sine wave

·         Current frequencies 16.66, 50, 60 and 200Hz

·         DC offset –10 to 10mA

·         Time measurements, Toff, 0 to 65000 micro seconds, 10 micro seconds resolution

·         Conductivity test for N, L1, L2, L3 lines

·         Test button check procedure with 115 and 230V

·         Switch on sequence check (N has to switch before L1, L2, L3)

·         Free turnoff test: turn of at fault current and pressed lever

·         Choice of test path, N, L1, L2, L3

·         12 bit  resolution

User can build any sequence and number of test and store them as test data bank. Tolerance levels and values are easily edited





DAX FI-KZS

·         Complete T/M system for ground-fault-switches FI, FIG

·         AC current source, ranges 10,20,50,100,200,500,1000,2000mA

·         Voltage up to 20VAC

·         Current ramp in 20ms steps

·         12 bit resolution

·         Different current waveforms, user selectable with 1 degree resolution

·         Switch off time measurement 0.1ms to 10s

·         Switch failure detection

·         IEEE-488 and RS232 interface

·         Microcontroller and PC control, WIN95, WIN NT, Win2000



s-fikzs



Gospodinjski Aparati

DAX TKA-TWK

·         Tester for coffee machine and water cooker parameters. Voltage 115V/230V, power up to 3680 W (current up to 20 A).

·         Parameters measured: current, power, grounding resistance, insulation resistance, current leakage, HI-Pot test

·         Windows 2000 operating system for control computer.



tka-twk-s





DAX TAT

·         Tester for toaster parameters. Voltage 115V/230V, power up to 3680 W (current up to 20 A).

·         Parameters measured: current, power, grounding resistance, insulation resistance, current leakage, HI-Pot test

·         Windows 2000 operating system for control computer.



tat-paletni-s     bsh-products

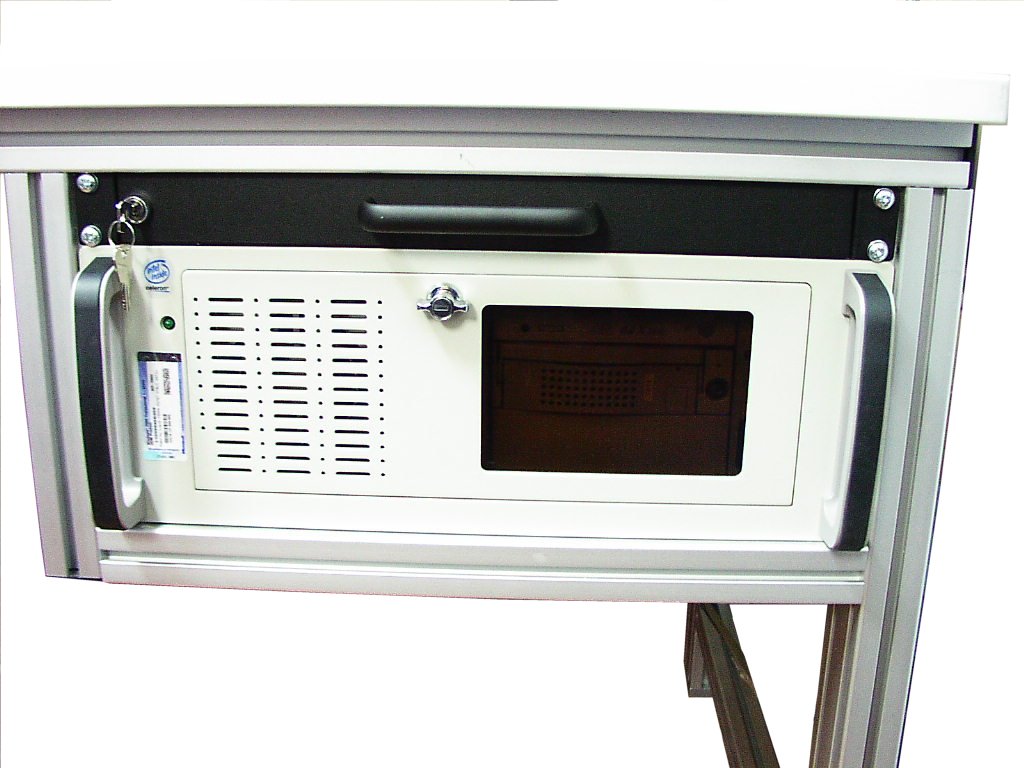

DAX TAT4

·         Toaster safety circuit response time test. Voltage 115V/230V, power up to 3680 W (current up to 20 A).

·         Can be used for other measurements of thermal appliances, compliant with connectivity specification

·         Windows 2000 operating system for control computer.



tat4-1-s     tat4-2-s





DAX P2 TC-TW

·         Tester for coffee machine and water cooker parameters. Voltage 115V/230V, power up to 3680 W (current up to 20 A).

·         Parameters measured: current, power, grounding resistance, insulation resistance, current leakage, HI-Pot test

·         Windows 2000 operating system for control computer.



p2-tc-tw-s   App-Meritev





DAX P2 TAT

·         Tester for toaster parameters. Voltage 115V/230V, power up to 3680 W (current up to 20 A).

·         Parameters measured: current, power, grounding resistance, insulation resistance, current leakage, HI-Pot test

·         Windows 2000 operating system for control computer.



p2-tat-s     App-F1





DAX NGPSP1T

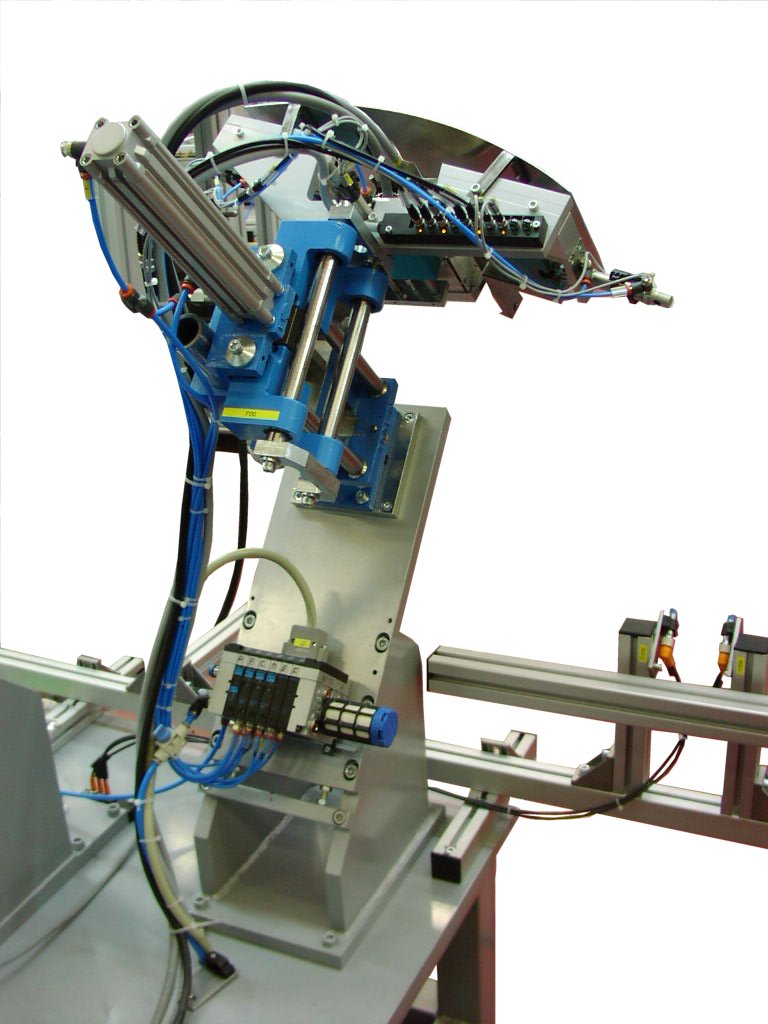

Domestic appliances electronics tester. It is a final part of cable and electronics assembly line where complete functional tests of electronics and cables are performed, utilizing automatic manipulation and measurements. See also: Automation



ngpsp1t-s      ngpsp1t2-s



Prenapetostne zaščite

DAX UREF-100

·         ZnO  arrester or high voltage diode reverse and breakdown tester

·         AC voltage source 0 to 100Veff, power up to 1000W.

·         High voltage output through transformer up to 60000V

·         Output transformer 100/6000V, 100/10000V up to 100/60000V for high voltage transformation. Transformer is a standard type medium voltage measurement transformer.

·         Resolution 12 bit

·         Reverse current measurement with zero voltage drop 0 to 10mA or 0 to 20mA



s-uref100a     s-uref100b





Varovalke/Stikala

DAX TR100DC-SIS10

·         DC current source 0 to 100A , 10V, system tester for fuses

·         PC control, DOS



s-tr100dcsis10a     s-tr100dcsis10b







DAX TR120DC

·         DC current source 0 to 120A , 15V, part of automated production line

·         Microcontroller



s-tr120dc





DAX TR200DC

·         DC current source 0 to 200A , 15V, system tester for fuses / part of production line

·         PC control, DOS



DAX TR02K

·         AC current source 0 to 200A, 10V,  frequency 20 to 1000Hz, system tester for fuses / part of production line

·         Microcontroller and PC version



DAX TR035K

·         AC current source 0 to 350A, 10V,  frequency 50 and 60Hz, system tester for fuses / part of production line

·         Microcontroller and PC version



DAX TR1000

·         AC current source 0 to 1000A, 12V,  frequency 50Hz, system tester for fuses / part of production line

·         Microcontroller and PC version



DAX TR1500AC

·         AC current generator and system for low voltage fuse and switch testing. Computer controlled, compact design. Currents up to 1500A. Sinus waveform with 50 and 60Hz. Output power is 6kW. Output power is 15kW. NT or Windows 2000 operating system for control computer.



s-tr1500aca     s-tr1500acb



TR1500AC-Idle

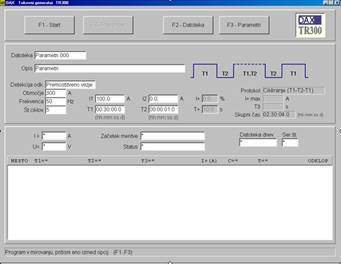

DAX TR300/12

·         AC current generator with system for 12 test fixtures for simultaneous testing of fuses or switches. Output power is 15kW. NT or Windows 2000 operating system for control computer.



s-tr30012a     s-tr30012b





Visoka Napetost / Prenapetost

DAX SRC-1

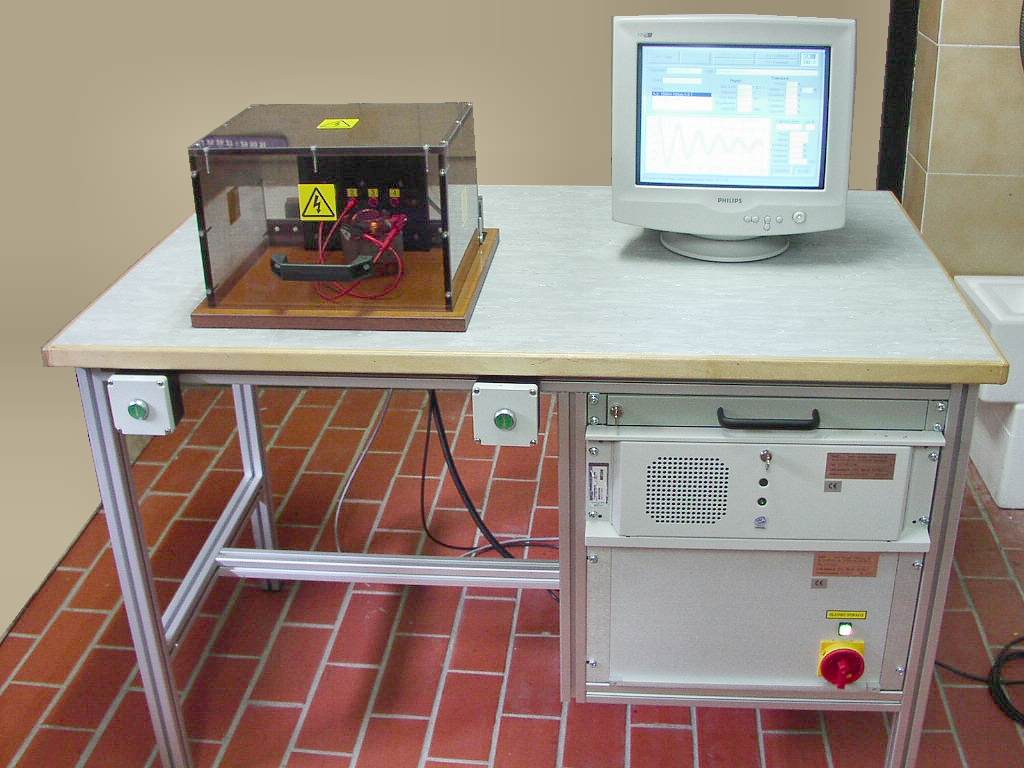

·         Surge tester for windings of motors, relays, coils. Test voltage up to 4kV, smart routines for arc detection and comparative measurements

·         Available in laboratory and production version

·         NT or Windows 2000 operating system for control computer.



s-src1a     s-src1b





Polprevodniki

DAX S1-ROB

·         Diode reverse and forward direction measurement and evaluation

·         Reverse voltage generation, bipolar 0 to +/- 1500V

·         Reverse current generation, bipolar 0 to +/-0.1mA, up to +/-1500V

·         Reverse current (leakage) measurement 0  to 0.1mA

·         Forward current generation, bipolar 0 to +/-5A

·         Forward voltage drop measurement 0 to 2.048V

·         12bit resolution, 1% accuracy

·         Motorola/Hitachi HD6803/6303 or 68HC11 controller, IEEE-488 and RS232 interface

·         Main benefit of the instrument is its full solid state construction. No relays are used to switch between reverse/forward and ranges. Unique forward voltage drop principle is used, high voltage reverse current and reverse voltage generators (+/-1500V). 1500V is not a limit for design technique used, 300V increments are possible.







DAX S1-BR

·         Bridge reverse and forward direction measurement

·         Same as S1-ROB but:

·         Diode reverse and forward direction measurement

·         Reverse voltage generation, bipolar 0 to +/- 1800V

·         Reverse current generation, bipolar 0 to +/-0.1mA, up to +/-1800V

·         Reverse current (leakage) measurement 0  to 0.1mA

·         Forward current generation, bipolar 0 to +/-40.96A

·         Forward voltage drop measurement 0 to 4.096V

·         Motorola/Hitachi HD6803/6303 or 68HC11 controller, IEEE-488 and RS232 interface







DAX S1-WPR

·         Diode reverse characteristic measurement

·         Simple Go/NOGO tester for axial elements

·         Reverse voltage 0 to 2000V

·         Reverse current measurement ranges 100nA, 1000nA, 0.01mA, 0.1mA, 1mA



DAX UREF-100

·         ZnO  arrester or high voltage diode reverse and breakdown tester

·         AC voltage source 0 to 100Veff, power up to 1000W.

·         High voltage output through transformer up to 60000V

·         Output transformer 100/6000V, 100/10000V up to 100/60000V for high voltage transformation. Transformer is a standard type medium voltage measurement transformer.

·         Resolution 12 bit

·         Reverse current measurement with zero voltage drop 0 to 10mA or 0 to 20mA



s-uref100a     s-uref100b







DAX RTH-MPC

·         Transient thermal resistance measurement

·         If  1 to 100A

·         Im 1 to 100mA

·         Uf measurement 0 to 2.048V

·         Pulse duration 100 microsecond up to 10000 seconds

·         Uf measurement delay in 50 microseconds steps

·         12 bit resolution

·         Measured and calculated results:

·         Uf, Um, Ud, If, delta T, delta Uf, Pd, Rth

·         Motorola/Hitachi HD6803/6303 or 68HC11 controller, IEEE-488 and RS232 interface

·         Industrial PC version with Windows



s-rth2pc







DAX-DCT

·         Limited function (just diode) curve tracer for reverse characteristic evaluation

·         Reverse voltage 0 to 2000V

·         Reverse current measurement up to 100mA

·         Industrial PC and DOS for control, user interface, statistics and data logging.



Vzmeti in Blažilci

DAX FAM-1000

·         Shock absorber tester

·         Force range 0 to 1000 N

·         Motion frequencies DC to 20 Hz

·         Stroke 0.5 to 150 mm

·         Positioning resolution 0.01 mm

·         PC control, WIN NT





Nizka Upornost

DAX OHM2

·         Microohm-meter with ranges 2, 20, 20, 200, 2000 mili Ohm, 2,20,200,2000 Ohms

·         Handler interface

·         RS232 and IEEE-488



DAX OHM3

·         Microohm-meter with ranges 0.2, 2, 20, 20, 200, 2000 mili Ohm, 2,20,200,2000 Ohms

·         Handler interface

·         RS232 and IEEE-488



s-ohm3



Mehanske Vibracije

s-mechvib1     s-mechvib2



DAX PMV2G

·         Hand held vibration level tester with semiconductor sensor,

·         Range 20 and 200mm/s, RMS

·         Acceleration 0 to 2G

·         Analog output for acceleration and speed



DAX MV2G

·         Permanent control of vibration with semiconductor sensor,

·         Range 20 and 200mm/s, RMS

·         Acceleration 0 to 2G

·         Analog output and 20mA current loop

·         PC control, WIN95, WIN NT, frequency spectrum (FFT), data logging



DAX MV50G

·         Permanent control of vibration with semiconductor sensor,

·         Range 20 and 200mm/s, RMS

·         Acceleration 0 to 50G

·         Analog output and 20mA current loop

·         PC control, Windows p, frequency spectrum (FFT), data logging



Posebna Merilna Oprema

DAX FI-KZS

·         Complete T/M system for ground-fault-switches FI, FIG

·         AC current source, ranges 10,20,50,100,200,500,1000,2000mA

·         Voltage up to 20VAC

·         Current ramp in 20ms steps

·         12 bit resolution

·         Different current waveforms, user selectable with 1 degree resolution

·         Switch off time measurement 0.1ms to 10s

·         Switch failure detection

·         IEEE-488 and RS232 interface

·         Microcontroller and PC control, WIN95, WIN NT, Win2000



s-fikzs





DAX OHM2

·         Microohm-meter with ranges 2, 20, 20, 200, 2000 mili Ohm, 2,20,200,2000 Ohms

·         Handler interface

·         RS232 and IEEE-488



DAX OHM3

·         Microohm-meter with ranges 0.2, 2, 20, 20, 200, 2000 mili Ohm, 2,20,200,2000 Ohms

·         Handler interface

·         RS232 and IEEE-488



s-ohm3






DAX RTH-MPC

·         Transient thermal resistance measurement

·         If  1 to 100A

·         Im 1 to 100mA

·         Uf measurement 0 to 2.048V

·         Pulse duration 100 microsecond up to 10000 seconds

·         Uf measurement delay in 50 microseconds steps

·         12 bit resolution

·         Measured and calculated results:

·         Uf, Um, Ud, If, delta T, delta Uf, Pd, Rth

·         Motorola/Hitachi HD6803/6303 or 68HC11 controller, IEEE-488 and RS232 interface

·         Industrial PC, Windows operating systems version is available.



s-rth2pc



untitled1





DAX-DCT

·         Limited function (just diode) curve tracer for reverse characteristic evaluation

·         Reverse voltage 0 to 2000V

·         Reverse current measurement up to 100mA




• • • • •
